Angiography Catheters

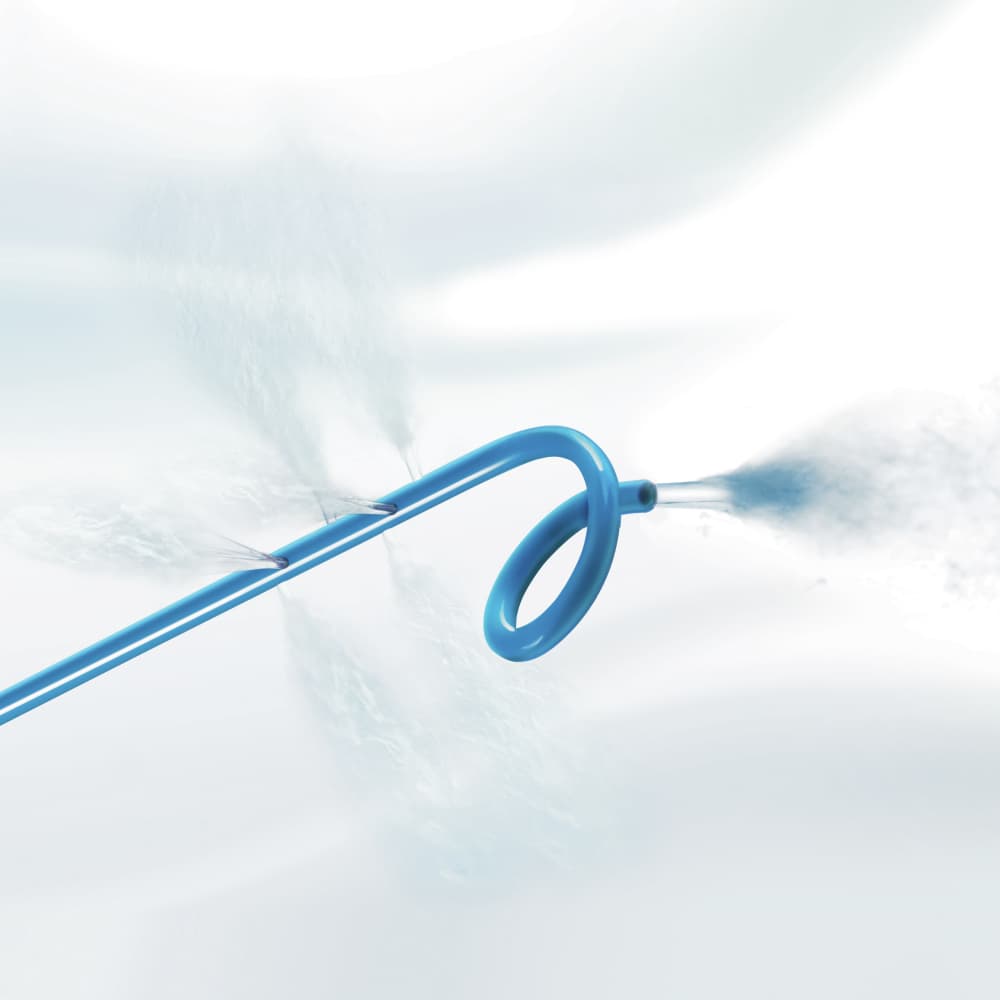

Angiodyn diagnostic catheters for coronary angiographies
Symmetrically braided shaft for 1:1 force transmission
Atraumatic non braided tip
Color coded ergonomic catheter hub
Product Range
4 French – selective, flush and multipack configurations
5 French – selective, flush and multipack configurations
6 French – selective, flush and multipack configurations
