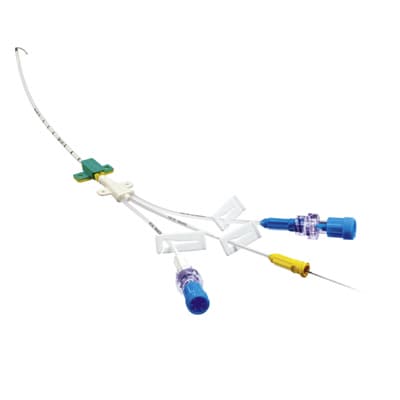

Triple-lumen catheter set for catheterization of the vena cava according to the Seldinger method with the possibility of ECG based Central Venous Catheter tip placement and position control
Set consists of:
Valve needle (V) or Seldinger needle (S) (depending on set configuration)
Kink-proof guide wire with flexible J-tip
Triple-lumen catheter: Soft catheter tip / X-ray detectable, opaque / Three lumen: distal = 16 G; middle = 18 G; proximal = 18 G / Length markings / Color-coded Luer-Lock hubs / Fixation wings at the channel junction for securing the catheter
Movable fixation with fixation wings for catheter fixation at the puncture site
