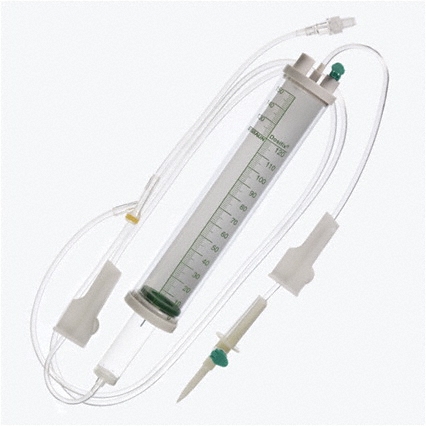

DOSIFIX LUER LOCK | B. Braun- Brand name
- Dosifix®
- Product name (HC)
- Dosifix®
- Product type
- Administration set
- Application
- Infusion
- Type of administration set
- Gravity
- Container connector
- IV Nutrimix spike
- Length
- 180.00 cm
- Inner-ø tube
- 3.00 mm
- Outer-ø tube
- 4.10 mm
- Type of filter
- Fluid filter
- Position of filter
- Drip chamber
- Pore size (Fluid filter)
- 15 µm
- drops/ml
- 60
- Air ventilation
- Yes (w. air vent filter)
- Flow control device
- Roller clamp
- with AirStop
- Yes (shut off valve)
- with PrimeStop
- No
- Number of back check valves
- -
- Number of needle-free valves
- -
- Number of Injection Access
- 2
- Injection access
- needle-based, y-site
- Type of Injection Access
- Safeline
- Burette
- 150.00 ml
- Connection
- Luer-Lock/male
- Light-protected
- No
- Color of light protection
- -
- Pump compatibility (Type)
- -
- max. pressure
- 0.5 bar
- Material
- PVC
- Type of packaging
- Peel pack
- Product (unpack.) contains PVC
- Yes
- Product (unpack.) cont. Latex
- No
- Packaging contains PVC
- No
- Packaging contains Latex
- No
- Packaging contains DEHP
- No
- Product contains PVC
- Yes
- Product contains Latex
- No
- Product contains DEHP
- No
- Product contains Nickel
- Yes
- Disposable / Reusable
- disposable
- Sterility
- sterile
- Type of Sterilization
- EO
